Dialog

An overview of TinyMCE dialogs and how to create custom dialogs.

Contribute to this page

Overview

A dialog is a popup UI element that contains a header, body and footer, each containing specific types of sub-components. Dialogs also have an instance API and several configuration options, including configurable callback functions for certain dialog events.

Note: TinyMCE also supports URL dialogs. Configuring a URL dialog is quite different to configuring a standard TinyMCE dialog.

Use cases

Display simple information

The code plugin’s dialog is an example of a simple dialog. It contains only one body panel component that displays the HTML code from the content.

Source Code

Display complex information

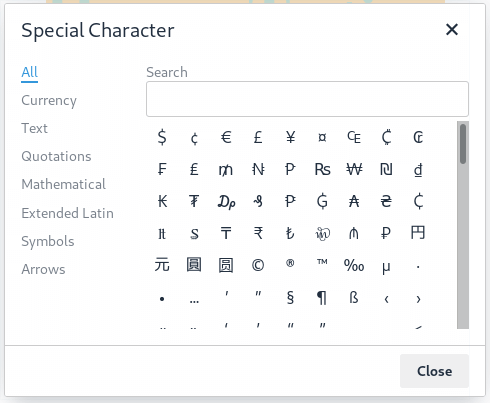

More complex dialogs can use tab panels and various layouts to categorise and organise information displayed to the user. For example, the help and character map plugins use dialogs with tabbed panels to categorise and separate information.

Special Characters

Interactive dialogs

TinyMCE dialogs can also contain interactive components such as buttons, checkboxes and input fields.

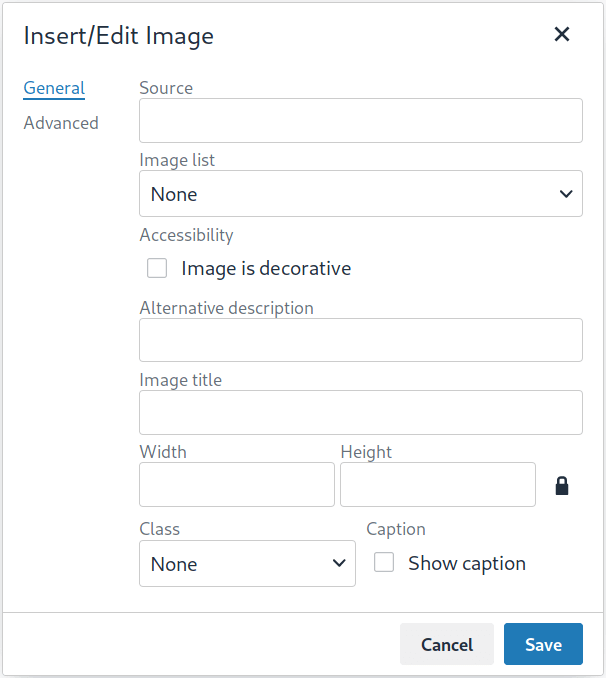

For example, the image plugin’s dialog allows for users to link to or upload an image, input a description, title, class, caption, height and width, then insert it into the editor.

Insert/Edit images

Dialog configuration

A dialog configuration has three main parts to match the three main parts of the dialog’s UI:

  • Title: The title of the dialog. This will display in the header of the dialog.

  • Body: The body of the dialog. The body component can be a panel or a tab panel, which can contain an array of panel components such as buttons, inputs and text.

  • Buttons: An array of footer buttons that are displayed in the dialog’s footer.

Basic example

The configuration for a basic dialog that displays HTML information might look like this:

tinymce.activeEditor.windowManager.open({
  title: 'Dialog Title', // The dialog's title - displayed in the dialog header
  body: {
    type: 'panel', // The root body type - a Panel or TabPanel
    items: [ // A list of panel components
      {
        type: 'htmlpanel', // A HTML panel component
        html: 'Panel content goes here.'
      }
    ]
  },
  buttons: [ // A list of footer buttons
    {
      type: 'submit',
      text: 'OK'
    }
  ]
});

Configuration options

Name Value Requirement Description
title string required The title of the dialog. This will display in the header of the dialog.
body panel or tabpanel component required The specification for the body component.
buttons FooterButton[] required An array of footer buttons to render in the footer of the dialog.
size 'normal', 'medium' or 'large' optional default: normal - Dialog size options.
initialData object optional An object containing initial values for the dialog’s panel components.
onAction (dialogApi, details) => void optional Function invoked when a user interacts with a button type panel component or clicks a Custom type footer button.
onSubmit (dialogApi) => void optional Function invoked when a Submit type footer button is clicked.
onCancel (dialogApi) => void optional Function invoked when the dialog is cancelled. The dialog header’s close button and a Cancel type footer button invoke this function.
onChange (dialogApi, details) => void optional Function invoked when the value of an input type panel component changes.
onClose () => void optional Function invoked when the dialog is closed. The dialog header’s close button, a Cancel type footer button and the dialog instance API’s close() method invoke this function.
onTabChange (dialogApi, details) => void optional This method only applies to tab panel dialogs. Function invoked when the user changes tabs. details is an object that contains newTabName and oldTabName.

For more information on the dialogApi object that is passed to some of the configuration options, see the dialog instance API documentation.

Event callback functions

Each of the event callback functions - onAction, onSubmit, onCancel, onChange, onClose and onTabChange - are shared between all dialog components that may trigger them. For example, Custom type footer buttons and dialog panel buttons all trigger onAction. Therefore, callback functions that may be triggered by multiple components are passed an object (called details above) that contains the name of the component that triggered the event.

Any callback function that is not passed a details object assumes that the dialog will only contain one component which can trigger it or that it does not matter if the function is triggered by multiple components. For example, onSubmit is only triggered when a user clicks on a Submit type footer button, and TinyMCE assumes that a dialog will only have one Submit type button. In comparison, onCancel and onClose are both triggered by clicking the X button in the top right of a dialog or by clicking a Cancel type footer button. These two buttons have the same functionality, and therefore TinyMCE does not differentiate between them.

Body components

The body of a dialog must be either a panel (a single panel) or a tabpanel (a collection of panels). Each panel can contain panel components such as inputs, buttons and text.

Note: TinyMCE also supports URL dialogs. Configuring a URL dialog is quite different to configuring a standard TinyMCE dialog.

Panel

The basic dialog type is a panel dialog. A panel is a container for panel components. A panel type dialog only has one panel.

{
  type: 'panel',
  items: [ ... ] // array of panel components
}

TabPanel

A tabpanel dialog contains multiple panels, and a tab navigation menu on the left-hand side of the dialog to allow for switching between panels. Each panel can contain different panel components, allowing for complex dialogs.

See the tab panel component reference for tab panel configuration options.

{
  type: 'tabpanel',
  tabs: [ // array of tab panel specifications
    {
      name: 'mytab',
      title: 'My Tab',
      items: [ ... ] // array of panel components
    },
    ...
  ]
}

The name of the panel can be used with the dialogApi.showTab('tabName') method to programmatically switch tabs. It is also passed to onTabChange as part of the details object.

Example tab panel

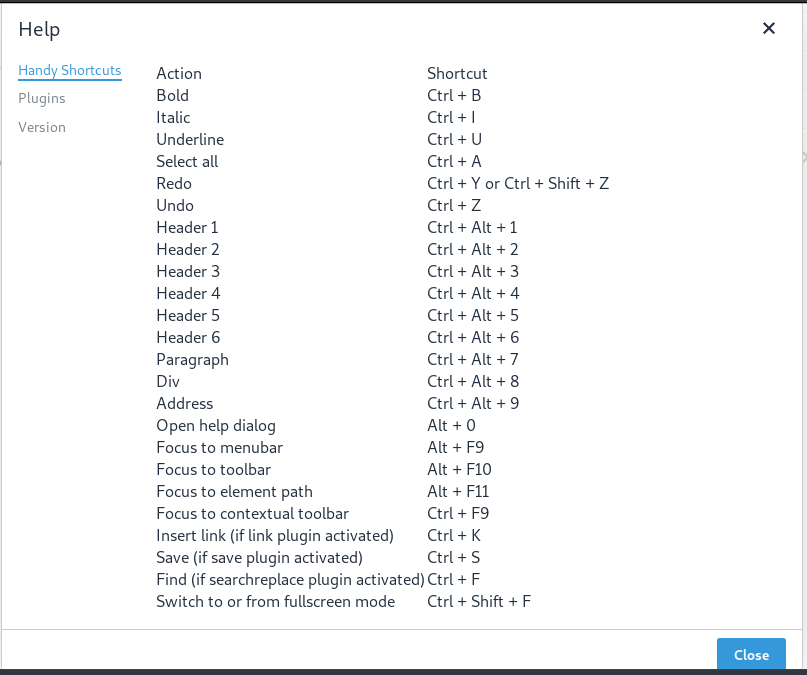

The Help plugin’s dialog is an example of a tab panel dialog.

Help Button

Footer buttons

A button is a clickable component that can contain text or an icon. There are two types of buttons (primary and secondary buttons), though the only difference is that they are styled differently. Primary buttons are intended to stand out. The color will depend on the chosen skin.

Note: Dialog footer buttons are different to dialog panel buttons.

Configuration

Name Type Requirement Description
type 'submit' or 'cancel' or 'custom' required Must be 'submit', 'cancel' or 'custom' based on the type of callback function that should be invoked when the button is clicked.
text string required Text to display in the button if icon is not specified. Also used for the button’s title attribute.
name string optional An identifier for the button. If not specified, the button will be assigned a randomly generated name.
icon string optional Name of the icon to be displayed. Must correspond to an icon in the icon pack. When configured, the button will display the icon instead of text.
primary boolean optional default: false - Whether to style the button as a primary or secondary button.
disabled boolean optional default: false - When true, the button will be disabled when the dialog loads.
align 'end' or 'start' optional default: 'end' - When set to 'end' the button will display on the right-hand side of the dialog. When set to 'start' the button will display on the left-hand side.

Note: Buttons do not support mixing icons and text at the moment.

Disabling and enabling buttons

To toggle between a button’s disabled and enabled states, use enable(name) or disable(name) from the dialog instance API, where name is the identifier the button was configured with.

Button types and event callbacks

The different footer button types will invoke different callbacks when clicked:

  • A Submit type button will invoke the onSubmit callback function provided in the dialog configuration.
  • A Cancel type button will invoke the onCancel and onClose callback functions. These callback functions are also fired when a user clicks the X button in the top right of the dialog.
  • A Custom type button will invoke the onAction callback function, and pass it the button’s name in the details object. This allows developers to create a click handler for each Custom type footer button in the dialog. See the Redial example for an example of how to use this.

See the dialog configuration options documentation for more information.

Example

{
  type: 'submit', // button type
  name: 'submitButton', // identifying name
  text: 'Submit', // text for the button
  // icon: 'checkmark', // will replace the text if configured
  disabled: false, // button is active when the dialog opens
  primary: true, // style the button as a primary button
  align: 'start' // align the button to the left of the dialog footer
}

Dialog instance API

When a dialog is created, a dialog instance API is returned. For example, const instanceApi = editor.windowManager.open(config);. The dialog API instance is also passed to some of the dialog configuration options.

The instance API is a JavaScript object containing methods attached to the dialog instance. When the dialog is closed, the instance API is destroyed.

Dialog API methods

Methods Description
getData() => <T> getData() returns a key-value object matching the structure of the initialData. The object keys in the returned data object represent a component’s name.
setData(newConfig: object) => void setData(newData) updates the data set. This method also works with partial data sets.
enable(name: string) => void Calling enable() and passing the component name will enable a component, allowing users to interact with the component.
disable(name: string) => void Calling disable() and passing the component’s name will disable the component.
focus(name: string) => void Calling focus() and passing the component’s name will set the browser’s focus to the component.
block(message: string) => void Calling block() and passing a message string will disable the entire dialog window and show a loading image. This is useful for handling asynchronous data. The message is used for screen reader accessibility. When the data is ready use unblock() to unblock the dialog.
unblock() => void Calling unblock() will unblock the dialog restoring functionality.
close() => void Calling the close() method will close the dialog. When closing the dialog, all DOM elements and dialog data are destroyed. When windowManager.open(config) is called again, all DOM elements and data are recreated from the config.
redial(config) => void Calling redial() and passing a dialog body configuration will destroy and recreate the body of the dialog. See the Redial documentation.
showTab(name: string) => void This method only applies to tab panel dialogs. Calling showTab() and passing the name of a tab will make the dialog switch to the named tab.

Dialog data and state

All dialogs have an internal data store, which is used to track the value and/or state of the dialog’s panel components.

This data store takes the form of a JavaScript object, where the object’s keys are the names of the configured panel components. For example, if a dialog contains a checkbox component configured with name: myCheckbox and the checkbox is not checked then the dialog’s data object will contain { myCheckbox: false }.

The current value of a dialog’s data store can be accessed using the dialog instance API’s getData() function. It can also be set using setData() which will automatically update the relevant components. For example, if you call setData({ myCheckbox: true }) with the previous example, the checkbox would be toggled to checked.

To set initial values for components when the dialog is opened, use the initialData dialog configuration option. For example, you could set the checkbox in the previous example to be checked when the dialog opens by including initialData: { myCheckbox: true } in the dialog’s configuration.

Redial

Redial is a concept that allows developers to replace a dialog’s configuration with a new configuration. This can be used for advanced applications such as:

  • Programmatically changing the information displayed in a dialog while it is open.
  • Changing panel components on user action. For example, updating the options in a selectbox component based on user input to another interactive component.
  • Creating a multipage form where a button leads to the next page.

To redial a dialog, pass a new dialog configuration to the redial() method from the dialog instance API.

Note: At the moment, Redial does not support partial dialog replacement or the replacement of specific components. Redial must be passed an entire dialog configuration.

See the redial example for more information on how to use Redial.

Examples

Simple interactive dialog

The following example demonstrates how data flows through the dialog and how buttons are configured. This is an interactive dialog that inserts the name of a cat into the editor content on submit.


/* example dialog that inserts the name of a Pet into the editor content */
var dialogConfig =  {
  title: 'Pet Name Machine',
  body: {
    type: 'panel',
    items: [
      {
        type: 'input',
        name: 'catdata',
        label: 'enter the name of a cat'
      },
      {
        type: 'checkbox',
        name: 'isdog',
        label: 'tick if cat is actually a dog'
      }
    ]
  },
  buttons: [
    {
      type: 'cancel',
      name: 'closeButton',
      text: 'Cancel'
    },
    {
      type: 'submit',
      name: 'submitButton',
      text: 'Do Cat Thing',
      primary: true
    }
  ],
  initialData: {
    catdata: 'initial Cat',
    isdog: false
  },
  onSubmit: function (api) {
    var data = api.getData();
    var pet = data.isdog ? 'dog' : 'cat';

    tinymce.activeEditor.execCommand('mceInsertContent', false, '<p>My ' + pet +'\'s name is: <strong>' + data.catdata + '</strong></p>');
    api.close();
  }
};

tinymce.init({
  selector: 'textarea.petMachine',
  toolbar: 'dialog-example-btn',
  setup: function (editor) {
    editor.ui.registry.addButton('dialog-example-btn', {
      icon: 'code-sample',
      onAction: function () {
        editor.windowManager.open(dialogConfig)
      }
    })
  }
});



The dialog in this example contains two interactive components - an input component named catdata and a checkbox component named isdog. These names are used in the initialdata configuration property to set the initial values for these components. In this case, when the dialog loads the input will contain the text initial Cat and the checkbox will not be checked.

The dialog also contains two footer buttons - a submit type button and a cancel type button. Since the dialog’s configuration does not contain an onCancel callback, clicking the cancel type button will just close the dialog. However, the configuration does contain an onSubmit callback that will be fired when the submit type button is clicked.

In the onSubmit callback, the dialog instance API that is passed into the callback is used to call getData(). This function returns the dialog’s data store, from which we are able to get the state of the isdog checkbox and the value of the catadata input. This information is used to construct a sentence which is then inserted into the editor. Finally, close() is called to manually close the dialog.

Interactive example using Redial

Redial can be used to change information that is displayed in the dialog, create a multipage form where the next button loads a new form page, or to re-create the dialog with different components or options.

The following example demonstrates one way of implementing a multipage form dialog using the redial() method. Custom buttons are used to switch between the two pages of the form by calling redial() with the appropriate dialog configuration.

To see the output of the code, click on the TinyMCE tab on the fiddle below.


var page1Config = {
  title: 'Redial Demo',
  body: {
    type: 'panel',
    items: [{
      type: 'htmlpanel',
      html: '<p>Redial allows for the contents of a dialog to be replaced with new contents. This can be used to create multipage form dialogs.</p><br/><p>The Next button is initially disabled. When the <strong>checkbox</strong> is checked, the Next button should be enabled.</p>'
    }, {
      type: 'checkbox',
      name: 'anyterms',
      label: 'I agree to disagree'
    }, {
      type: 'htmlpanel',
      html: '<p>Pressing the Next button will call redial() to reload the dialog with the next page of the form.</p><br /><p>Press Next to continue.</p>'
    }]
  },
  initialData: {
    anyterms: false
  },
  buttons: [
    {
      type: 'custom',
      name: 'doesnothing',
      text: 'Previous',
      disabled: true
    },
    {
      type: 'custom',
      name: 'uniquename',
      text: 'Next',
      disabled: true
    }
  ],
  onChange: (dialogApi, details) => {
    var data = dialogApi.getData();
    /* Example of enabling and disabling a button, based on the checkbox state. */
    var toggle = data.anyterms ? dialogApi.enable : dialogApi.disable;
    toggle('uniquename');
  },
  onAction: (dialogApi, details) => {
    if (details.name === 'uniquename') {
      dialogApi.redial(page2Config);
    } else if (details.name === 'doesnothing') {
      /* this case should never be met as the button is never enabled. */
    }
  }
};

var page2Config = {
  title: 'Redial Demo - Page 2',
  body: {
    type: 'panel',
    items: [
      {
        type: 'selectbox',
        name: 'choosydata',
        label: 'Choose a pet',
        items: [
          { value: 'meow', text: 'Cat' },
          { value: 'woof', text: 'Dog' },
          { value: 'thunk', text: 'Rock' }
        ]
      },
      {
        type: 'htmlpanel',
        html: '<p>Click done and the dialog will log a message to the console, insert a sentence into the editor and close.</p>'
      }
    ]
  },
  buttons: [
    {
      type: 'custom',
      name: 'lastpage',
      text: 'Done',
      disabled: false
    }
  ],
  initialData: {
    choosydata: ''
  },
  onAction: (dialogApi, details) => {
    var data = dialogApi.getData();

    var result = 'You chose wisely: ' + data.choosydata;
    console.log(result);
    tinymce.activeEditor.execCommand('mceInsertContent', false, '<p>' + result + '</p>');

    dialogApi.close();
  }
};

tinymce.init({
  selector: 'textarea.wizard',
  toolbar: 'wizardExample',
  height: '900px',
  setup: (editor) => {
    editor.ui.registry.addButton('wizardExample', {
      icon: 'code-sample',
      onAction: () => {
        editor.windowManager.open(page1Config)
      }
    })
  }
});


The example JavaScript code contains two dialog configurations - page1Config and page2Config. The TinyMCE initialisation code adds a button to the editor that when clicked calls editor.windowManager.open(page1Config) to open a dialog using the first configuration.

The configuration for the first page of the multipage form contains a description of the form and a checkbox. The checkbox, via the dialog’s onChange() callback function, toggles whether the next button is disabled or enabled. The next button when clicked fires the onAction() callback function, which in turn triggers redial() which will replace the page1Config dialog with the page2Config dialog.

More specifically:

The onChange() callback in page1Config is fired when the checkbox is toggled. It uses enable and disable from the dialog instance API to disable and enable the Next button. The code uses getData() from the dialog instance API to get the state of the checkbox called anyterms (which is true if checked and false if unchecked) and choose enable() or disable() based on its value. It assigns the correct function to a variable, then calls that variable with the component name uniquename to toggle the state of the Next button.

The onAction() callback in page1Config is fired when either of the footer buttons are clicked, since they are both custom type footer buttons. onAction() is passed the dialog instance API and an object containing some data about the change event, including the name of the component that triggered it. This is important since the same onAction() handler is shared across all compatible dialog components. The code checks the name of the component that triggered onAction() and if it is uniquename (the name of the Next button) redial(page2Config) is called. If the component’s name is donothing then the code does nothing.

In page2Config the onAction() callback uses getData() to get the value of the selectbox component, and specifically whether the user has chosen Cat, Dog or Rock. It then constructs a sentence using this value, inserts it into the editor content and calls close() to manually close the dialog.
